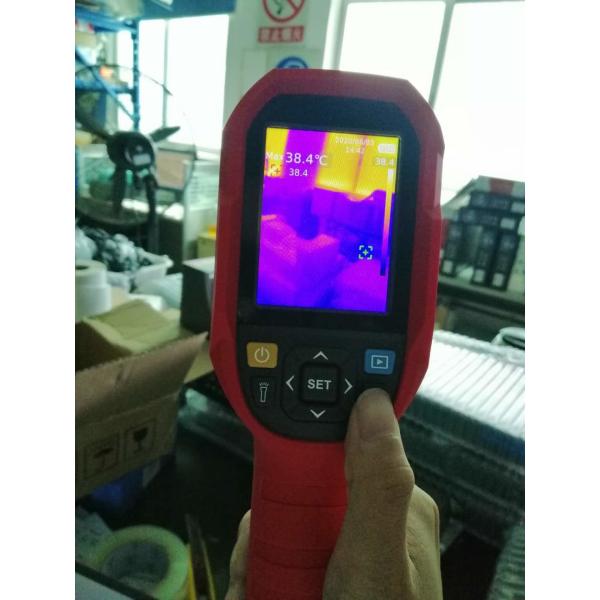

Name: 500ms Spotting Scope Temperature Measurement Thermal Camera
Brand: Kadymay
Price: 530 USD

Brand Name : Kadymay

Model Number : 260K

Certification : CE FCC

Place of Origin : China

MOQ : 20/pcs

Price : USD530/pcs， Negotiated price

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 200 per week

Delivery Time : 2-9days

Sensor : Uncooled focal plane

Thermal resolution : 49152 (256×192)

Charging voltage/current : 5V/2A

Image storage : 16GB SD Card

Contact Now

Thermal Imaging Monocular Thermal Imaging Spotting Scope Medical Thermal Imaging

Specifications
Model	UTi260K
Sensor	Uncooled focal plane
Temperature range	30˚C~45˚C
Resolution	0.1˚C
Accuracy	±0.5℃ (@ 25℃ ambient temperature)
Optimal measuring distance	1m
Temperature measurement response time	≤500ms (95% of reading)
Thermal resolution	49152 (256×192)
Pixel dimemsions	12μm
Palettes	Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow
Bandwidth of infraed spectroscopy	8~14μm
Field of view (FOV)	56°(H) × 42°(V)
Instantaneous field of view (IFOV)	3.8mrad
Thermal imaging sensitivity	＜50mk

Frame rate	＜25Hz
Temperature display	Center temperature measurement and high temperature tracking (default)
Image format	BMP
Image modes	Thermal camera, visible camera, image blending
Temperature measuring point	Besides central point, 3 temperature measuring points can be added
Visual camera	√
Resolution of visible light	640×480
Display resolution	320×240
Image blending	0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)
PC analysis software (PC)	√
Real-time image transmission	PC software image projection
Data communication	Type-C USB
Auto power off	Selectable (5min, 10min, 30min), 30min auto power off (default)
Battery life	≥6 hours
Charging time	≦5 hours
Charging voltage/current	5V/2A
Image storage	16G Micro SD card

500ms Spotting Scope Temperature Measurement Thermal Camera
